Magnetic heatbed MK52 24V (assembly)
Not compatible with

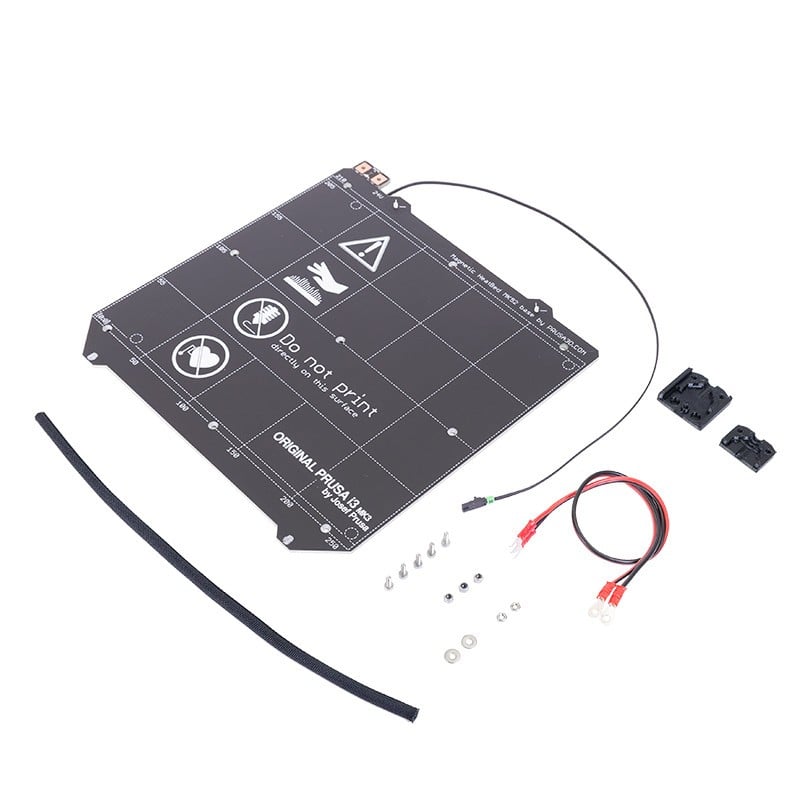

This product includes:
- Magnetic heatbed MK52 24V (1 pcs)
- Heatbed-Einsy power cable (screw-attached) (1 pcs)

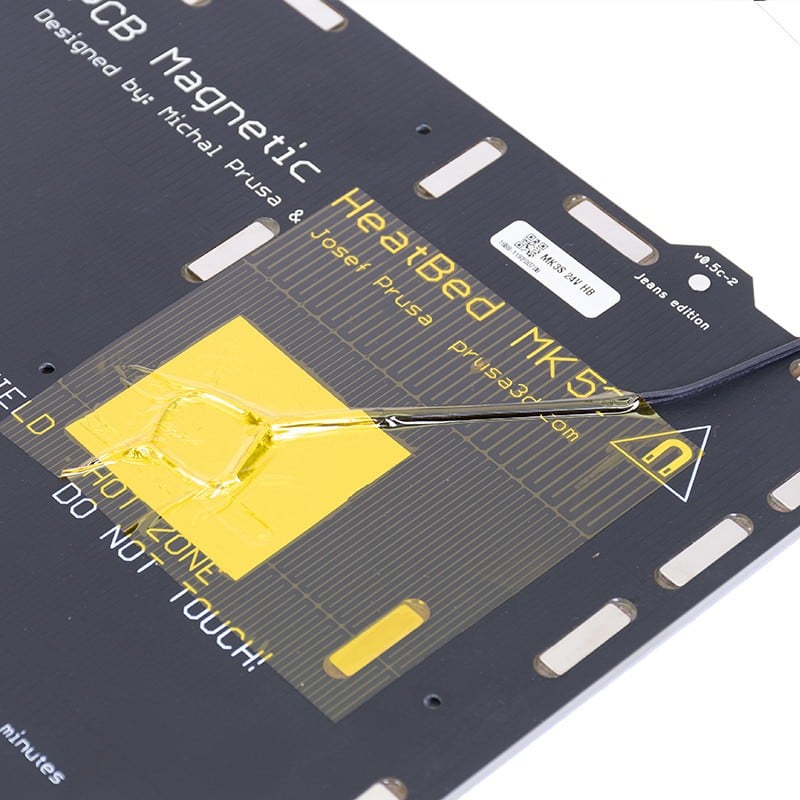

- Heatbed thermistor (already mounted and fixed in place by the aluminum and kapton tapes) (1 pcs)
- Textile sleeve (Length: 300 mm, Width: 5 mm) (1 pcs)
- Heatbed cable cover (1 pcs)
- Heatbed cable cover clip (1 pcs)
- Nuts: M3nN (3 pcs), M3n (2 pcs)
- Screws: M3x10 (5 pcs)
- Washers: M3/3,2/9/0,8 (2 pcs)
Specifications:
- Height: 264.4 mm
- Width: 254 mm
- Thickness: ~3.175 mm
- Maximum working temperature: 120°C
- Maximum recommended temperature: 110°C
- Voltage: 24V
- Current: 6.25A
- Magnets: 45SH Neodym block magnet (28 pcs), attached by Loctite HY 4090
To correctly install this replacement part, visit our knowledge base at help.prusa3d.com, select your specific printer model, and follow the instructions provided in the repair manual.
