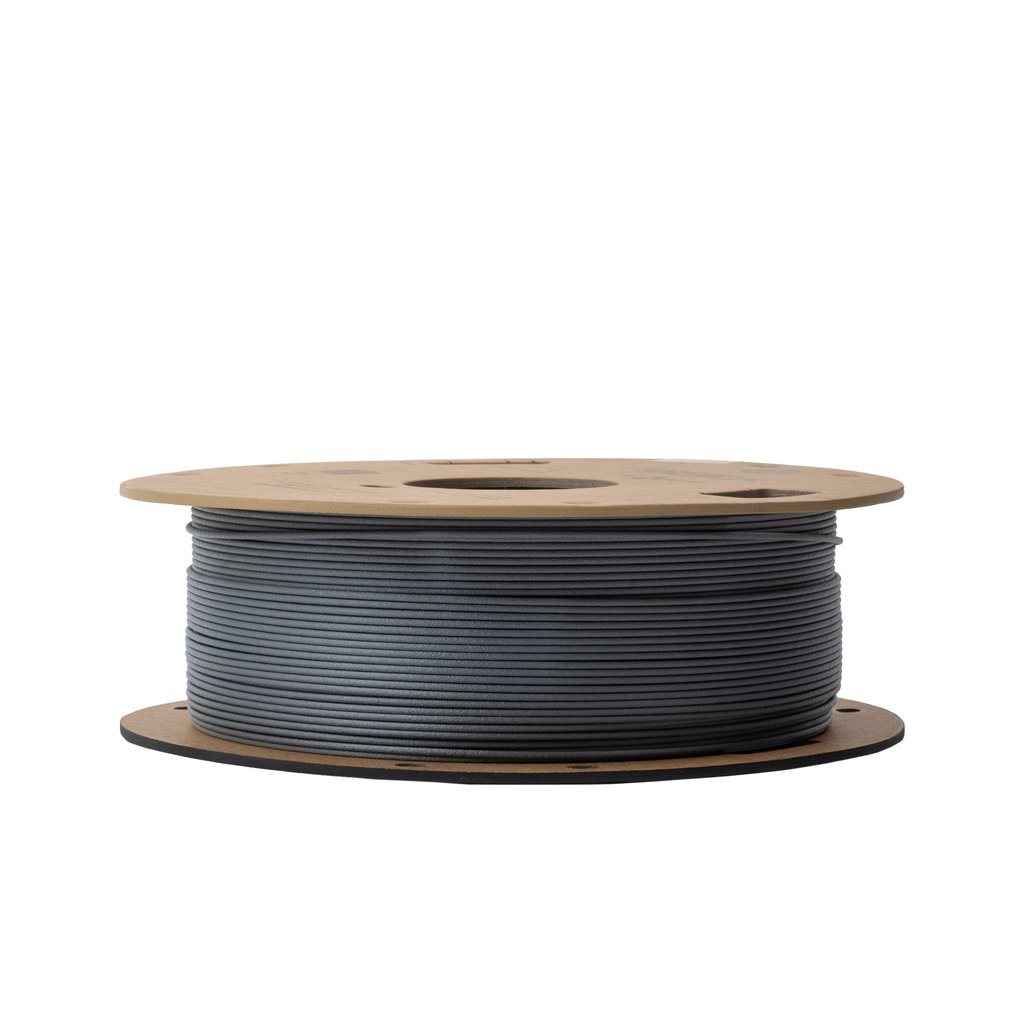

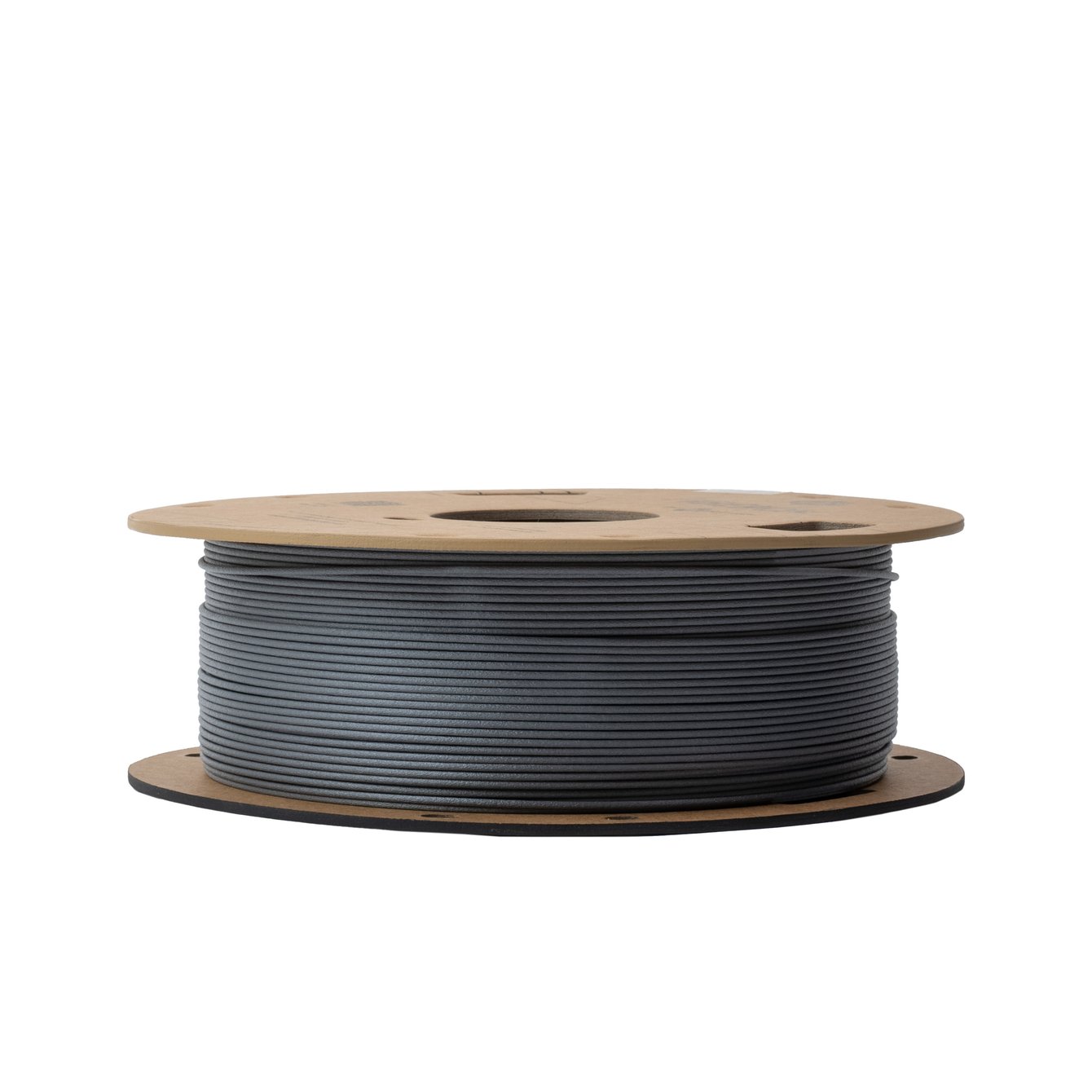

Polymaker Fiberon PPS-GF20 grey 500g
Parameters
Polymaker Fiberon PPS‑GF20Extreme chemical resistance combined with electric insulation
Polyphenylene Sulfide (PPS) is a semicrystalline thermoplastic that offers the highest possible chemical resistance. This material is not soluble in any known solvent at temperatures below 200 °C. Plus, the glass fibers bonded inside the polymer improve its dimensional stability and improve its electric insulation properties.
What makes PPS-GF20 special
A brief overview of the material's properties
Electric insulation and RF permeability
The glass fiber bonded inside the polymer doesn't conduct electric charge and doesn't block radio signals (Wi-Fi, Bluetooth, 5G).
Perfect chemical resistance
PPS is not soluble in any known solvent at temperatures below 200 °C. This material resists acids, bases, oils, and fuel.
High thermal resistance
PPS is a UL94 V0-certified self-extinguishing material without toxic additives. It offers thermal resistance of incredible 252 °C.
Galvanic corrosion resistance
The glass fibers inside the polymer improve its dimensional stability without unwanted side effects, such as galvanic corrosion. This makes the printed parts suitable for direct contact with aluminum components.
Printable on CORE One L+All you need is just a few small upgrades
You don't have to spend thousands on new printers to print high-temperature materials. Our printers are upgradable and versatile. A few small adjustments can turn the CORE One series 3D printers into a whole new product. Plus, we develop and test everything under one roof to bring the best possible results.
HT Hotend
For nozzle temperature up to 400 °C
HighTemp print sheet
Providing the perfect layer adhesion
Advanced filtration
To protect your health
USS Drybox
Keeps the filament dry for a long time
Basic Attributes
- 252 °C thermal resistance
- Perfect chemical resistance
- UL94 V0 self-extinguishing filament
- Resistance to galvanic corrosion
- Good electric insulator
- Harder to break than PPS-CF10
- Low moisture absorption (printed parts don't change dimensions and properties in humid environments)
- Abrasive material (a hardened nozzle is required)
- High printing temperatures (HT hotend is required)
- Large models may be hard to print due to warping
