United StatesHeatbed MK52 24V - xBuddy replacement set
Not compatible with

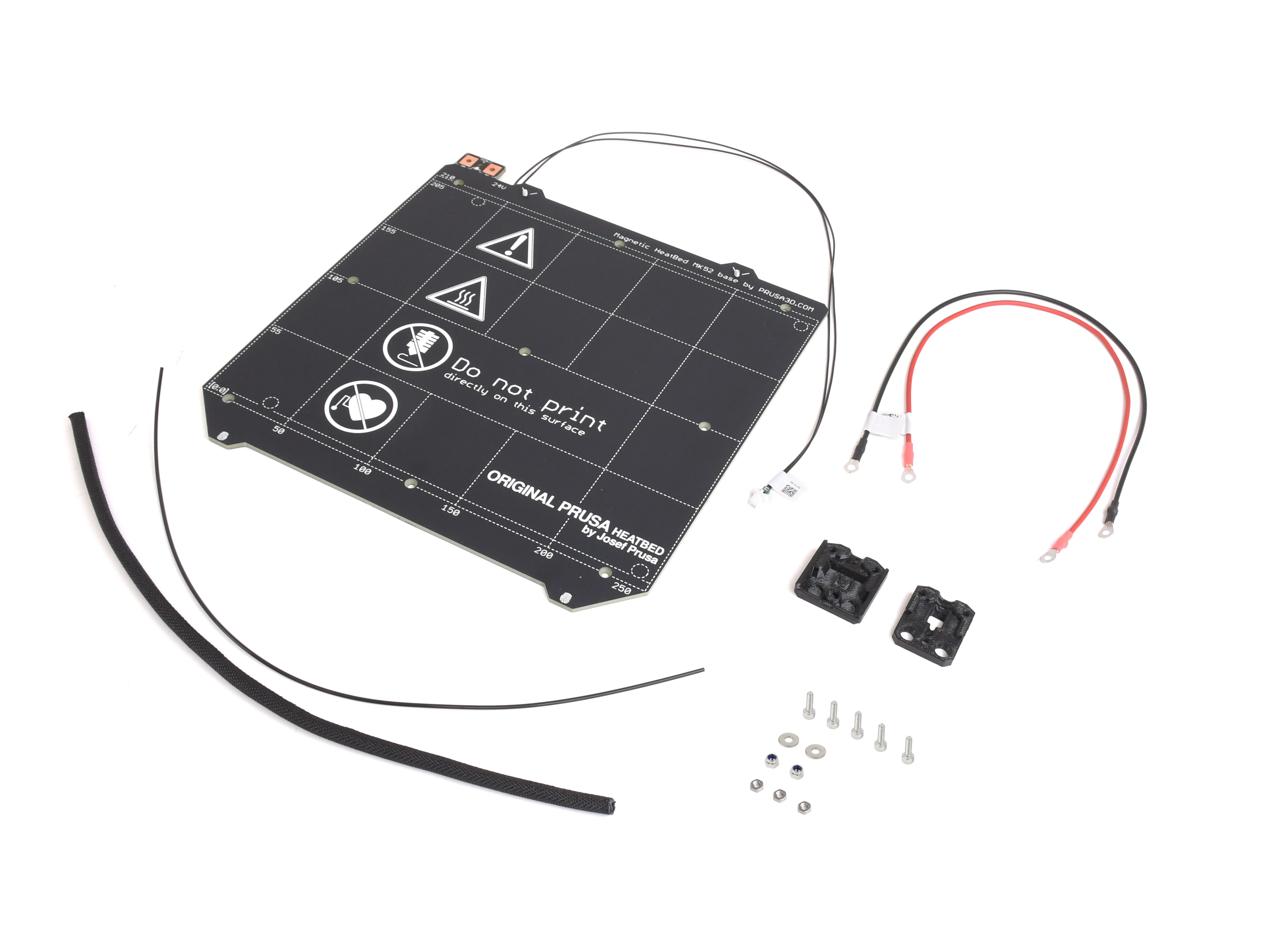

This product includes:
- Heatbed MK52 24V (1 pc)
- Heatbed wiring - black (1 pc)
- Heatbed wiring - red (1 pc)
- heatbed-cable-cover-top (1 pc)
- heatbed-cable-cover-bottom (1 pc)
- Textile sleeve 5x350 mm (1 pc)
- Nylon 2x380 mm (1 pc)
- M3x10 screw (5 pcs)
- M3n nut (3 pcs)
- M3nN nut (2 pcs)
- M3w washer (2 pcs)Â
Specifications:
- Height: 264.4 mm
- Width: 254 mm
- Thickness: ~3.175 mm
- Maximum working temperature: 120°C
- Maximum recommended temperature: 110°C
- Voltage: 24V
- Current: 6.25A
- Magnets: 45SH Neodym block magnet (28 pcs), attached by Loctite HY 4090
To correctly install this replacement part, visit our knowledge base at help.prusa3d.com, select your specific printer model, and follow the instructions provided in the repair manual.
This product is a replacement heatbed with wiring and printed parts. See below, which printers are compatible.
In stock
Preparation time: 1-3 business days. Note that other items in the order may affect the total leadtime.
$94.99
