What can you expect?

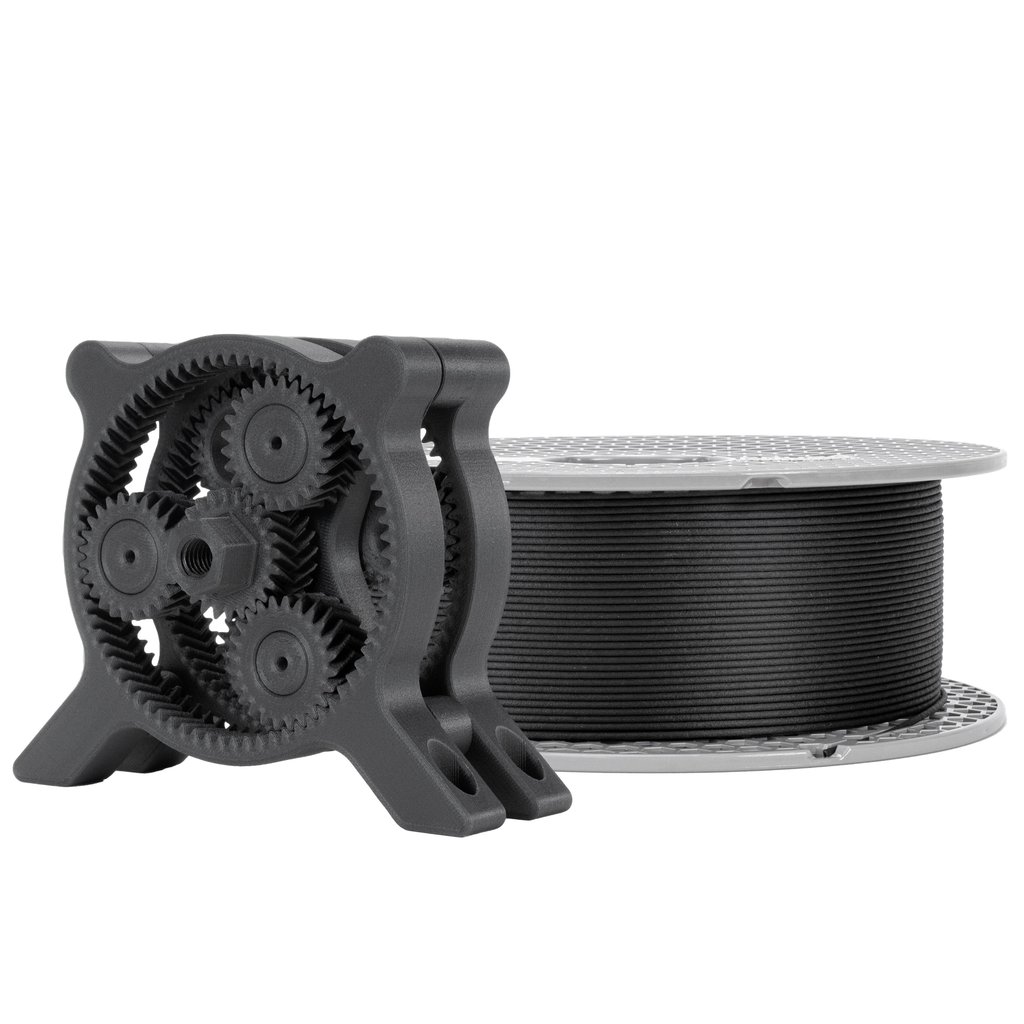

Prusament PA11 Carbon Fiber Black is a Polyamide 11 filled with (recycled) carbon fibers to improve its strength and minimize warping. This material also has a great temperature resistance (up to 190 °C) and its mechanical properties are similar to our Prusament PC Blend Carbon Fiber - due to the impact strength and tensile characteristics, this material is especially suitable for the production of mechanical parts, such as gears and other models where durability is key.
Manufactured In-House By Josef Prusa
We were not satisfied with the quality of filaments on the market. So we decided to make our own! Prusa Research is the only 3D printer manufacturer with its own filament production.
Premium-Grade Materials And Thorough Testing
The whole manufacturing process is closely monitored and tested – string diameter, color consistency, and mechanical properties – to make sure that every spool is perfect.
± 0.04 mm Manufacturing Guaranteed Precision
We believe the industry standard of 0.05 mm isn’t sufficient for perfect 3D printing. Instead, we guarantee ±0.04mm precision and highly-consistent colors in our filaments.
High Quality You Can Check Yourself
We are the only manufacturer that gives the option to inspect parameters of every filament spool. Scan a QR code on the spool to see all details online (check the sample spool).
Read more about Prusament in general in the article at blog.prusa3d.com and about Prusament PA11 Carbon Fiber Black in this article. Or just visit Prusament.com!
About PA11 Carbon Fiber Black
Prusament PA11 Carbon Fiber Black is a Polyamide 11 filled with recycled carbon fibers which makes it very tough and durable without the tendency to warp (a common issue with PA12). This material offers great mechanical properties, high durability and high temperature resistance (up to 190 °C). It is also resistant to a number of solvents, such as Sodium Hydroxide (NaOH), methanol, ethanol, toluene, acetone, motor oils, gasoline, etc.

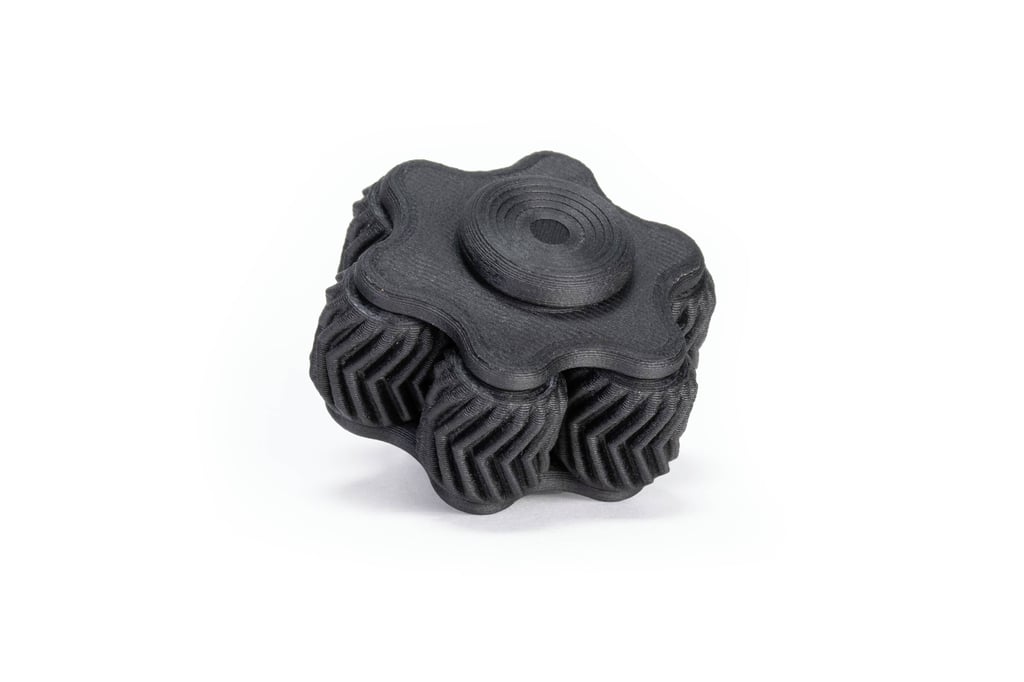

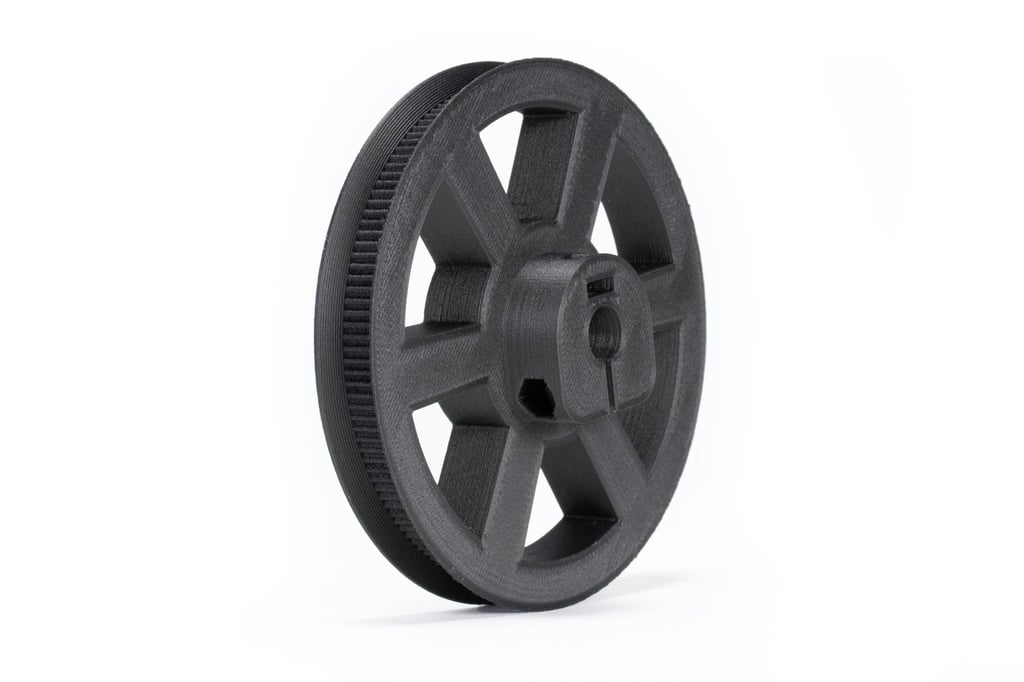

Prusament PA11 Carbon Fiber has good sliding properties and abrasion resistance. This makes it suitable for durable mechanical parts, such as gears and other moving parts. The mechanical properties (impact strength, tensile characteristics of the material) are similar to those of Prusament PC Blend Carbon Fiber. More information can be found in our material table.
Carbon fibers inside the filament are made by recycling waste from the manufacturing process or from carbon composites after the end of their lifespan.
Prusament PA11 Carbon Fiber Black can be printed onto textured or satin print sheets with a thin separation layer made with a glue stick (a separation layer is extremely important). However, the results may not be perfect. This is why we are introducing a new type of sheet - the Double-sided Powder-coated PA Nylon Satin Spring Steel Sheet which was designed specifically for Prusament PA11 Carbon Fiber Black. It is necessary to use a hardened steel nozzle. Carbon fibers are a highly-abrasive material and may damage brass nozzles.
If you are using the new PA Nylon Satin sheet, never clean it with IPA, acetone or other solvents - the surface will deteriorate quickly. Instead, clean the sheet with water only (a drop of dishwashing detergent may be used to clean greasy areas). We recommend printing in a well-ventilated room because PA11 with carbon fibers may release a noticeable odor into the air and produce ultra-fine particles. Printing on an enclosed 3D printer helps contain the odors and particles, plus the increased temperature may improve inter-layer adhesion.
PA11, like other polyamides, is a hygroscopic material (it absorbs air moisture). If the absorbed humidity reaches high values, the print quality will deteriorate. Deterioration occurs after a few days to a month, but if you are unsure or know you have not printed for a long time, we recommend drying the filament at 90°C for 4-6 hours before printing.
Also, don’t forget that the heatbed preheated for printing with PA11 has a high temperature (110 °C) and may burn you if you touch it!
You can find more in-depth printing tips in our article at blog.prusa3d.com and in our Material table.
|Great mechanical properties (tenacity and toughness)||Requires hardened stainless steel nozzle|
|Excellent temperature resistance (up to 190 °C)||Lower inter-layer adhesion compared to pure PA11|
|Low friction coeficient||Still somewhat hygroscopic|
|Good abrasion resistance||Higher price|
|Noticeably less hygroscopic compared to other polyamides||Produces odors during printing|
|Highly attractive matt black surface|
|Dimensional stability – easy printing, possible to print large models|
|High wear resistance|
|Uses recycled carbon fibers from the manufacturing process|
Prusament PA11 Carbon Fiber Black is made in-house by Prusa Research.
1.75 mm filament is manufactured with a precision of ±0.04 mm.
